ENGINEERED TO EXCEED YOUR EXPECTATIONS.

The 47X extends the reach of the X-Series into even more vocational applications, with a number of new features including a shorter hood and a shorter 111″ BBC. This shorter configuration is ideal for applications that require optimized equipment packaging to meet local overall vehicle length requirements and applications that need to adhere to bridge laws, such as concrete mixers or dump trucks. So, no matter what job you need to do, there’s now another purpose-built tool to do it. Break new ground with the 47X.

Specs

47X RESOURCES

x series vocational

X-Series Vocational

SÉRIE X VOCATIONNELLE

SÉRIE X VOCATIONNELLE Brochure

47 tech sheet

4700 Tech Sheet

47 tech sheet FR

47 Tech Sheet FR

47X ENGINES

Detroit DD13

Cummins L9

47X SPECIFICATIONS

Specification

STANDARD OPTIONS
Cab 1. X-Series steel-reinforced aluminum cab with X-Series steel door
2. Trench-style low roof with lowered center section for optimal packaging of over cab equipment
3. One-piece roped-in windshield		 Optional single or high-visibility three-piece rear window

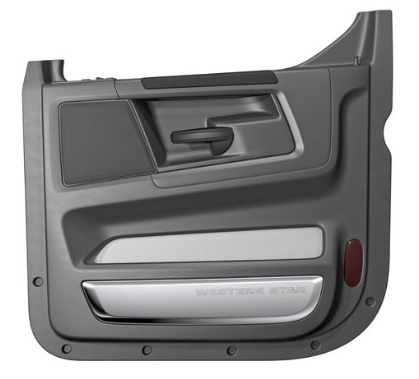

Interior Trim Levels 1. X-Series Base

  • Mordura cloth seat
  • Vinyl sleeper upholstery
  • Standard insulation
  • Standard LED cab lighting
  • Black finish steering wheel switches
  • Black finish dash gauge bezels
  • Carbon with black trim accents

2. X-Series Premium

  • Laredo leather seats
  • Upgraded sleeper upholstery
  • Premium insulation
  • Premium LED cab lighting
  • Bright finish steering wheel switches
  • Bright finish dash gauge bezels
  • Premium teak trim

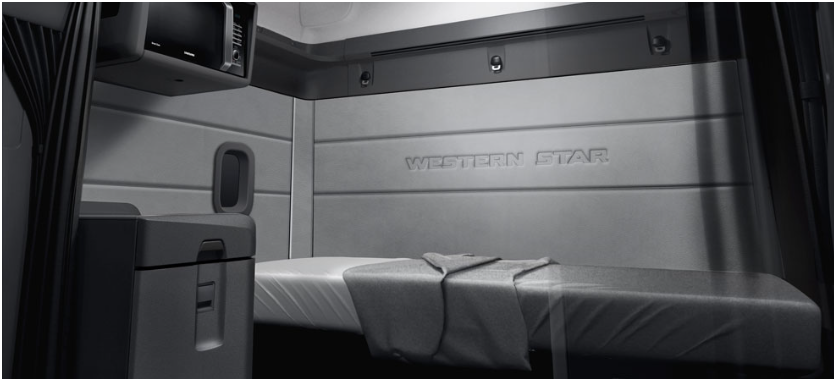

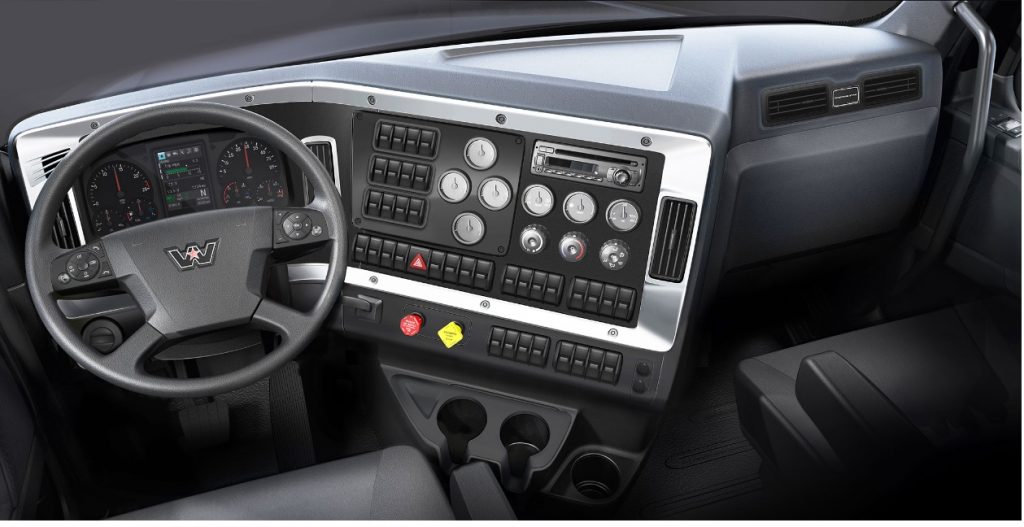

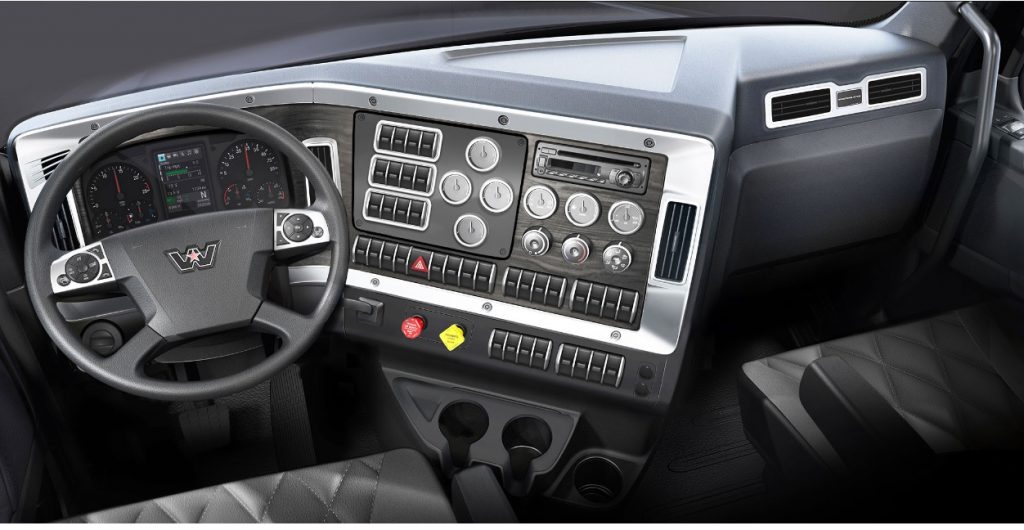

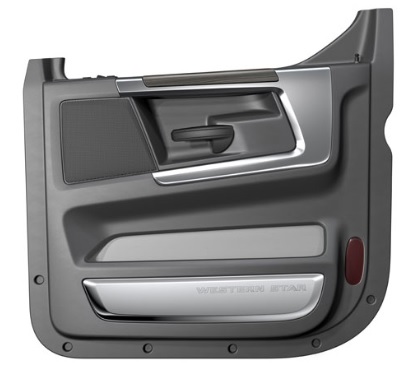

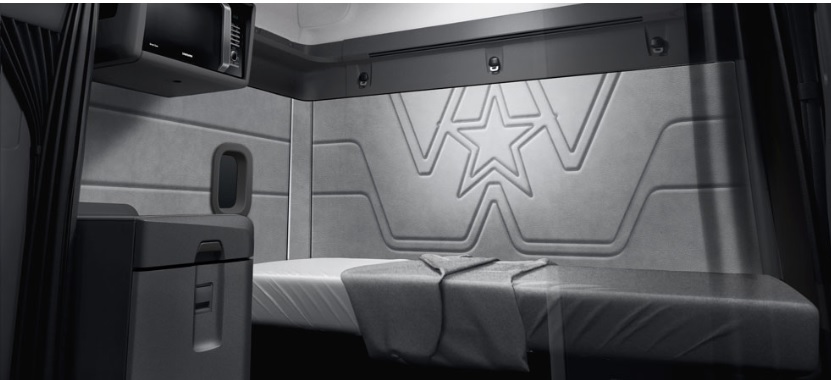

Interior Colors 1. Quarry Grey

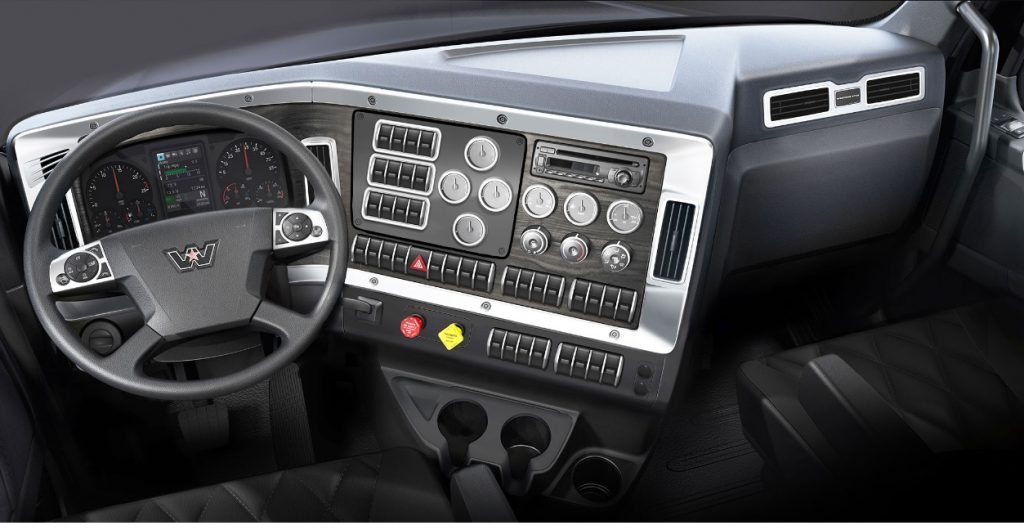

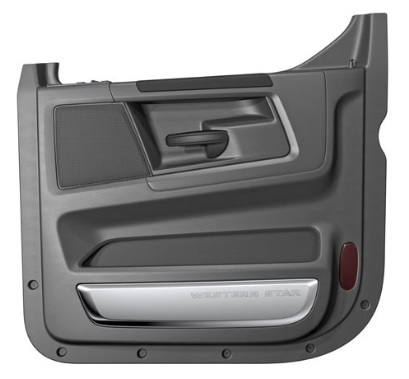

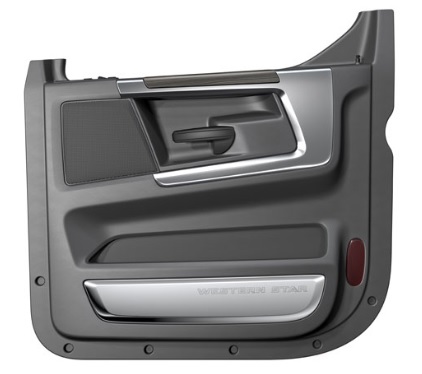

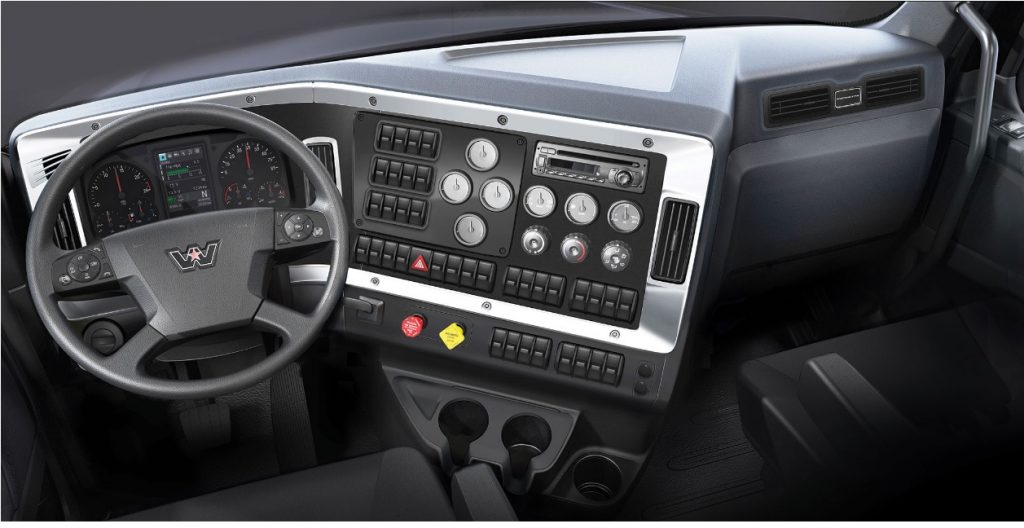

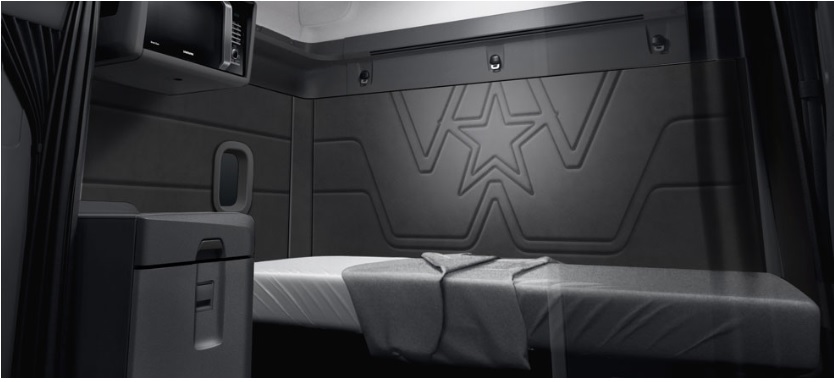

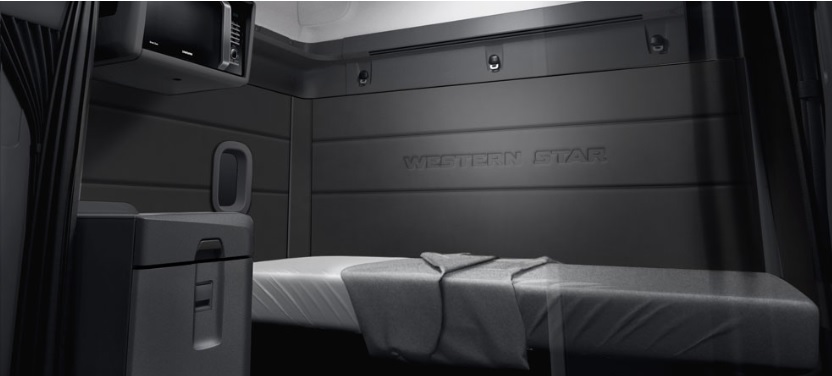

2. Charcoal Black

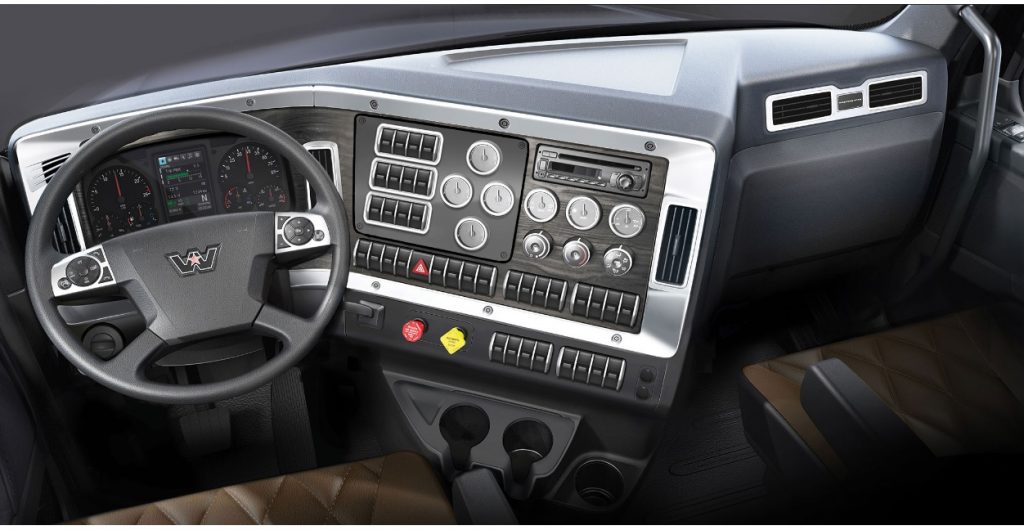

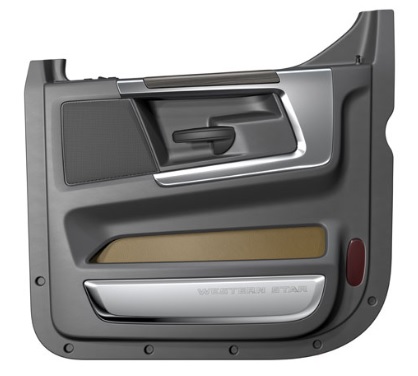

3. Timber Brown (available on Premium Package only)
Hood 1. Impact-resistant, durable, lightweight molded resin hood with sloped high-visibility design
2. ISO TECH Hood Suspension System
3. Standard with locking hood strut
Grille Radiator-mounted steel grille with stainless steel surround
HVAC 1. Best-in-class HVAC with 5 face outlets, 4 floor outlets, 2 side window defrost outlets and 10 blower speeds
2. Available only on sleepers, optional Idle-Free Dual HVAC that provides up to 10 hours of cooling or 34 hours of heating when parked

Air Intake



 Engine mounted air intake, plus optional hood-mounted pre-cleaner deliver improved dust capacity
Engine 1. Detroit® DD13® Gen 5, 370-525 HP, 1,250-1,850 lb-ft
2. Cummins L9, 260-380 HP, 860-1,250 lb-ft
3. Cummins X12, 350-500 HP, 1450-1700 lb-ft
Transmission 1. Detroit® DT12®-V AMT
2. Allison 3000 and 4000 Series Automatics
3. Eaton Fuller 10- 13- 18-speed; 8LL and 9ALL Manuals
4. Eaton Ultrashift PLUS and Endurant AMT
Power Take-offs (PTOS) 1. Intuitive and simple to use PTO control system that makes programming easy
2. FEPTO and REPTO available
3. Factory installed transmission PTO
Front Axle 1. Detroit® single 12,000-23,000 lbs
2. Detroit® tandem 40,000 lbs
3. Meritor single 12,000-22,000 lbs
Rear Axle 1. Detroit® single 23,000 lbs
2. Detroit® tandem 40,000-44,000 lbs
3. Dana tandem 46,000-50,000 lbs
4. Meritor single 21,000-30,000 lbs
5. Meritor tandem 40,000-58,000 lbs
6. Meritor tridem 69,000-78,000 lbs
Front Suspension 1. Flatleaf 14,600-23,000 lbs
2. Flatleaf (Tandem) 40,000 lbs
3. Taperleaf 12,000-20,000 lbs
4. Taperleaf (Tandem) 40,000 lbs
Rear Suspension 1. AirLiner® single 21,000-23,000 lbs
2. AirLiner® tandem 40,000-46,000 lbs
3. AirLiner® tridem 69,000 lbs
4. Chalmers tandem 40,000-70,000 lbs
5. Flatleaf single 23,000-30,000 lbs
6. Hendrickson tandem 40,000-70,000 lbs
7. Neway single 26,000 lbs
8. Neway tandem 46,000-52,000 lbs
9. Neway tridem 69,000-78,000 lbs
10. TufTrac tandem 40,000-52,000 lbs
Brakes 1. WABCO® 4S/4M and 6S/6M Anti-lock Braking System (ABS) with and without traction enhancement
2. Air Disc Brakes
Frame 1. Single-channel RBM @ 1.8-3.8MM inch-lbs
2. Inner C-channel reinforced RBM @ 4.4-5.5MM inch-lbs
3. 8″-30″ parent rail front frame extensions options available
Bumpers Standard 1/8″ stainless steel vocational
  • Optional 3/16″ painted steel
  • Optional 1/4″ plain or polished aluminum
  • Optional 5/16″ bright steel severe service
  • Optional 3/8″ painted steel severe service
  • Optional 1/4″ painted or bright steel logger
Fuel Tanks 1. Aluminum 25″ cylindrical, plain or polished
2. LH 60-150 gallon (227-568 liter)
3. LH 60, 80 and 90 gallon rectangular tanks Optional raised fuel tank mounting
4. RH 60-, 70-, 80-, 100-, 120-, 150-gallon (227-, 265-, 303-, 379-, 454-, 569-liter)
5. Standard forward mounting; optional aft mounting
6. LH and RH split fuel/hydraulic tank options available
7. LH and/or RH auxiliary fuel supply and return ports available
